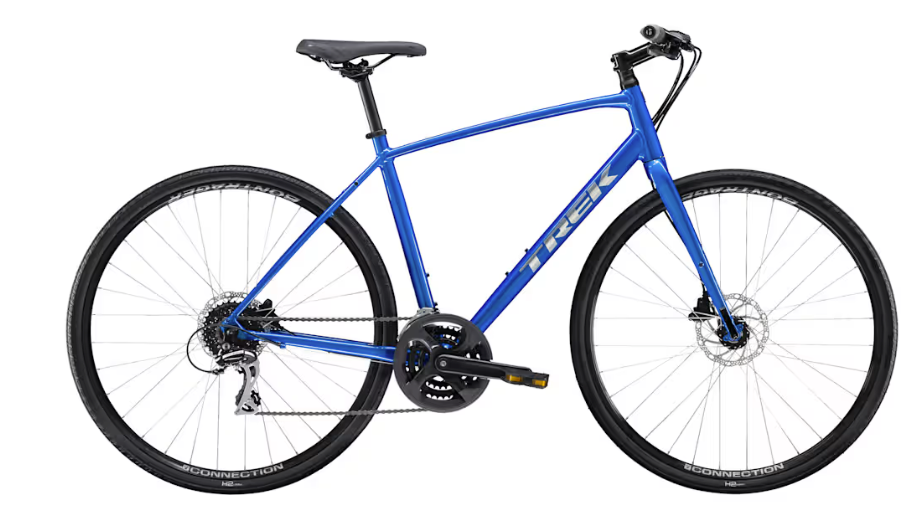

TREK FX 2 DISC (ALPINE BLUE)






Regular price
$749.99
Sale price
$949.99
-
Frameset

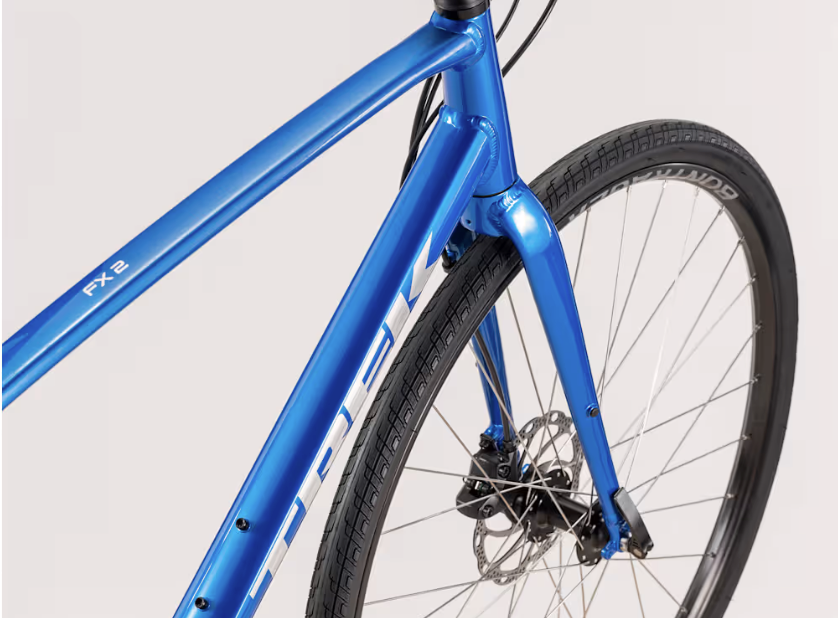

Frame
Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, flat-mount disc, rack and mudguard mounts, 135x5 mm QR
Fork
FX Alloy, flat-mount disc, rack mounts, 405 mm axle-to-crown, ThruSkew 5 mm QR
Wheels

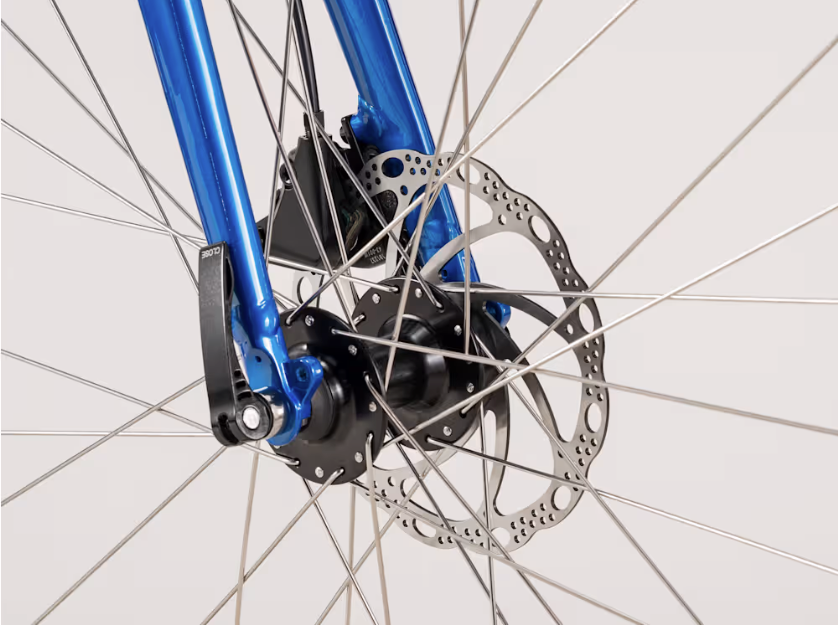

Hub front
Formula DC-20, alloy, 6-bolt, 100x5 mm
Skewer front
130x5 mm QR, ThruSkew
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Skewer rear
152x5 mm QR
Rim
Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve
Spokes
14 g stainless steel
Tyre
Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm
Max tyre size
700x38mm without mudguards, 700x35mm with mudguards

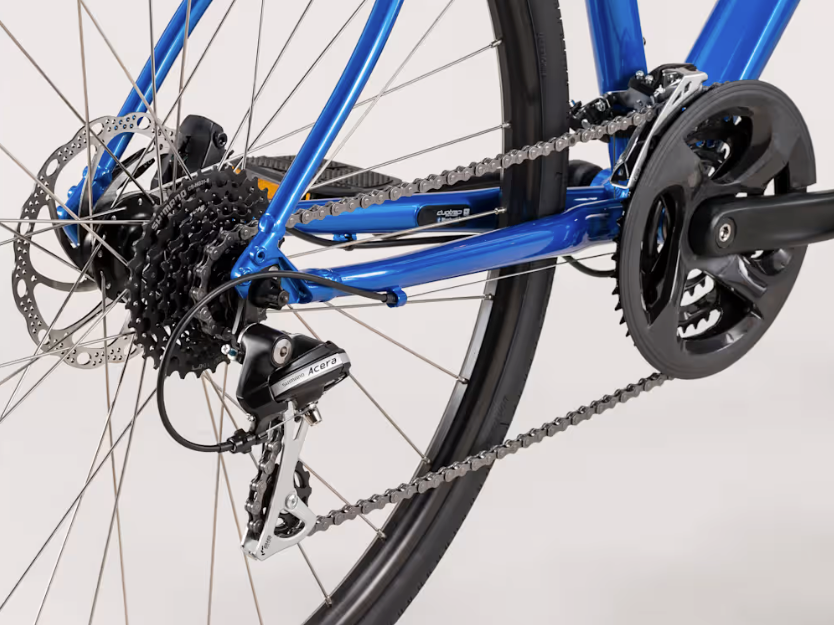

Drivetrain
*Shifter
Size: S, M, L, XL, XXL
Shimano Altus M310, 8-speed
Size: S, M, L, XL, XXL
Shimano M315, 8-speed
Front derailleur
Shimano Tourney TY710, 34.9 mm clamp, top swing, dual pull
Rear derailleur
Shimano Acera M360, long cage
Crank
Forged alloy, 48/38/28, chainguard, 170 mm length
Cassette
Shimano HG31, 11-32, 8-speed
Chain
KMC Z7
Pedal
Bontrager City pedals
Components

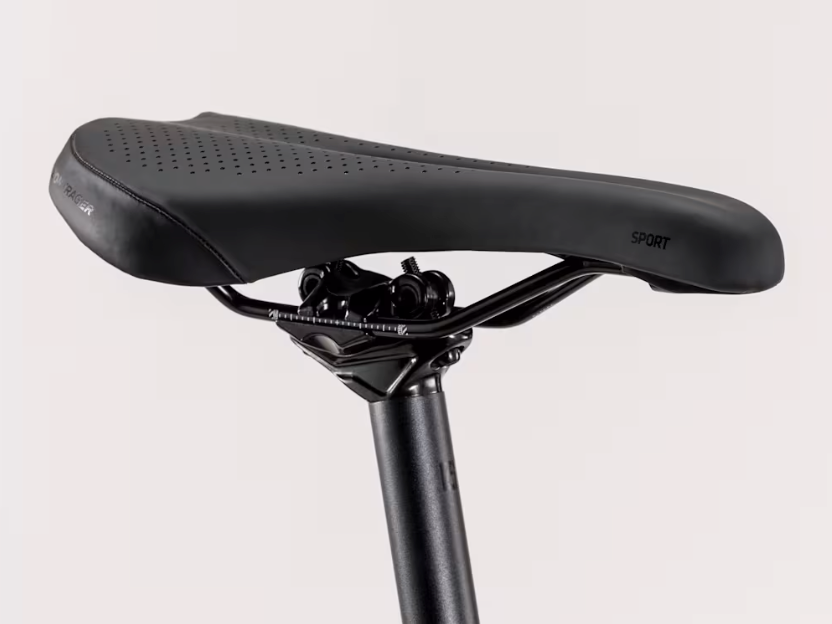

Saddle
Bontrager Sport
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
*Handlebar
Size: S, M
Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width
Size: L, XL, XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width

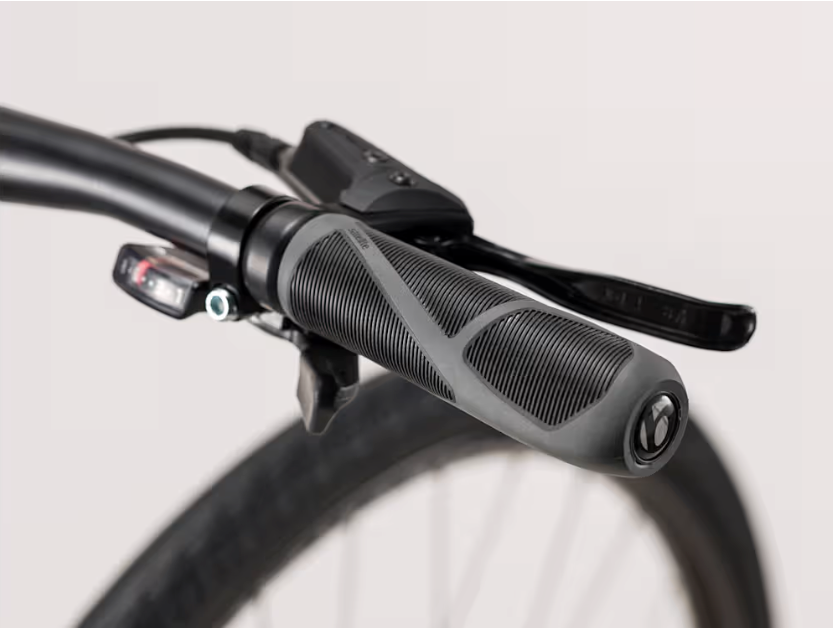

Grips
Bontrager Satellite
*Stem
Size: S, M
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Size: L, XL, XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
Head set
1 1/8" steel threadless
Brake
Tektro HD-R280 hydraulic disc, flat-mount, 160 mm rotor
Brake Set
Tektro HD-R280 hydraulic disc, flat-mount, 160 mm rotor
Weight
Weight
L – 11.95 kg / 26.34 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice. The prices shown are the manufacturer's suggested retail prices.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
