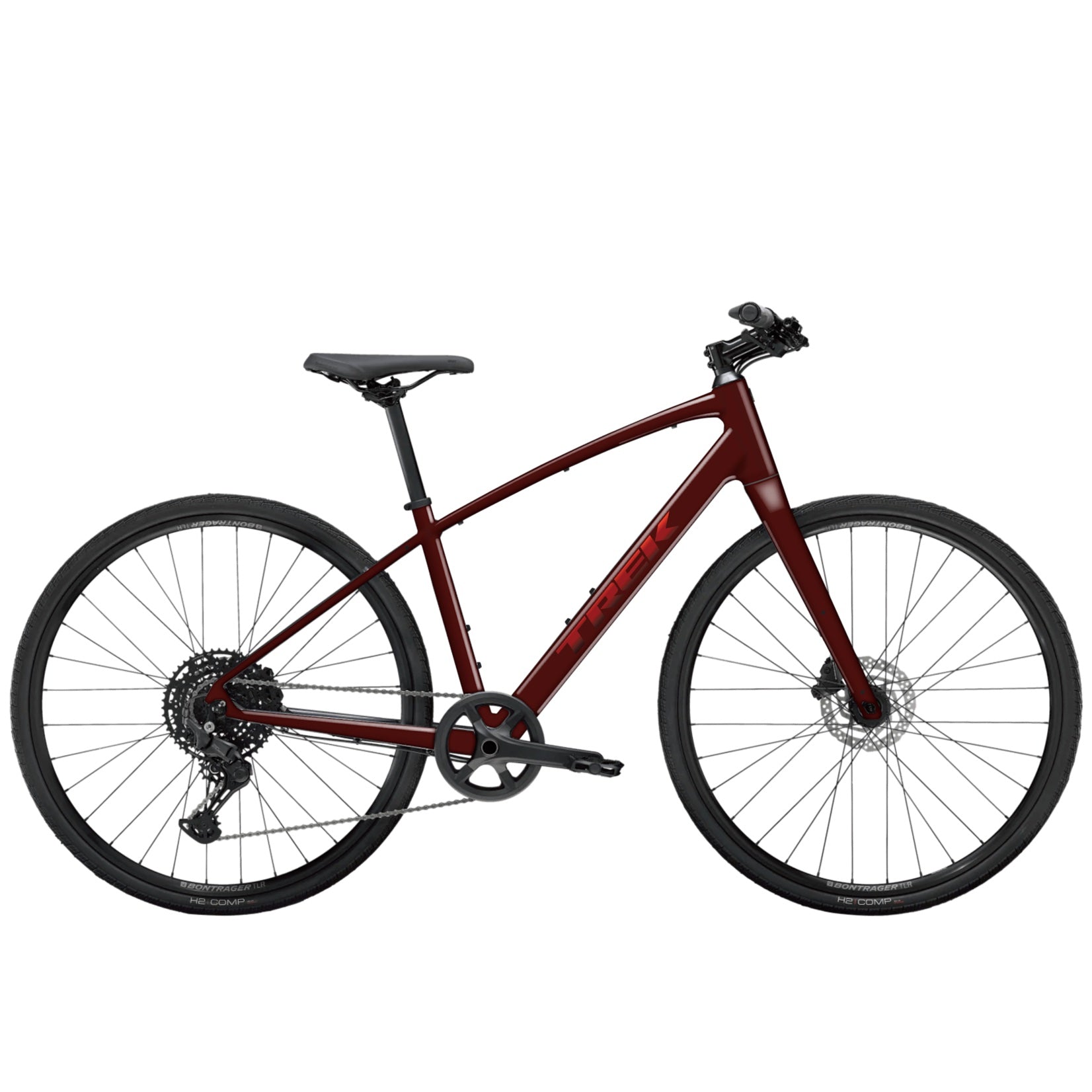

2026 FX 3 STEPOVER GEN 4 (DARK CARMINE)
Regular price $1,399.99
The FX 3 is a versatile hybrid bike that's primed for performance, comfort and utility. It has features like a lightweight aluminium frame, a carbon fork, a 1x drivetrain and powerful disc brakes that stop in any weather. It's a commuting pro if you want it to be, or the perfect fitness companion on road and rail trails.
|
Frameset |
|
|
Frame |
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|
Fork |
FX carbon, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR |
|
|
|
|
Wheels |
|
|
Hub front |
Formula DC-20, alloy, 6-bolt, 100x5 mm |
|
Skewer front |
139x5 mm bolt-on |
|
Hub rear |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
|
Skewer rear |
152x5 mm QR |
|
Rim |
Bontrager Tubeless Ready Disc, 32-hole, Presta valve |
|
Tyre |
Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm |
|
|
|
|
Drivetrain |
|
|
Shifter |
Shimano CUES U6000 w/optical gear display, 10-speed |
|
Rear derailleur |
Shimano CUES U6000 GS |
|
*Crank |
Size: XS, S, M Prowheel alloy, 40T narrow-wide ring, 170 mm length |
|
|
Size: L, XL Prowheel alloy, 40T narrow-wide ring, 175 mm length |
|
Cassette |
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
|
Chain |
Shimano LG500 |
|
Pedal |
Bontrager City pedals |
|
|
|
|
Components |
|
|
Saddle |
Bontrager H1 |
|
*Seatpost |
Size: XS, S, M Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
|
|
Size: L, XL Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length |
|
*Handlebar |
Size: XS, S, M Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width |
|
|
Size: L, XL Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width |
|
Grips |
Trek Line Ergonomic Pro, lock-on |
|
*Stem |
Size: XS, S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
|
|
Size: M, L, XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length |
|
Brake |
Shimano hydraulic disc, MT201 lever, UR300 calliper |
|
Brake rotor |
Shimano RT26, 6-bolt, 160 mm |
|
|
|
|
Weight |
|
|
Weight |
M - 11.65 kg / 25.69 lbs |
|
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
