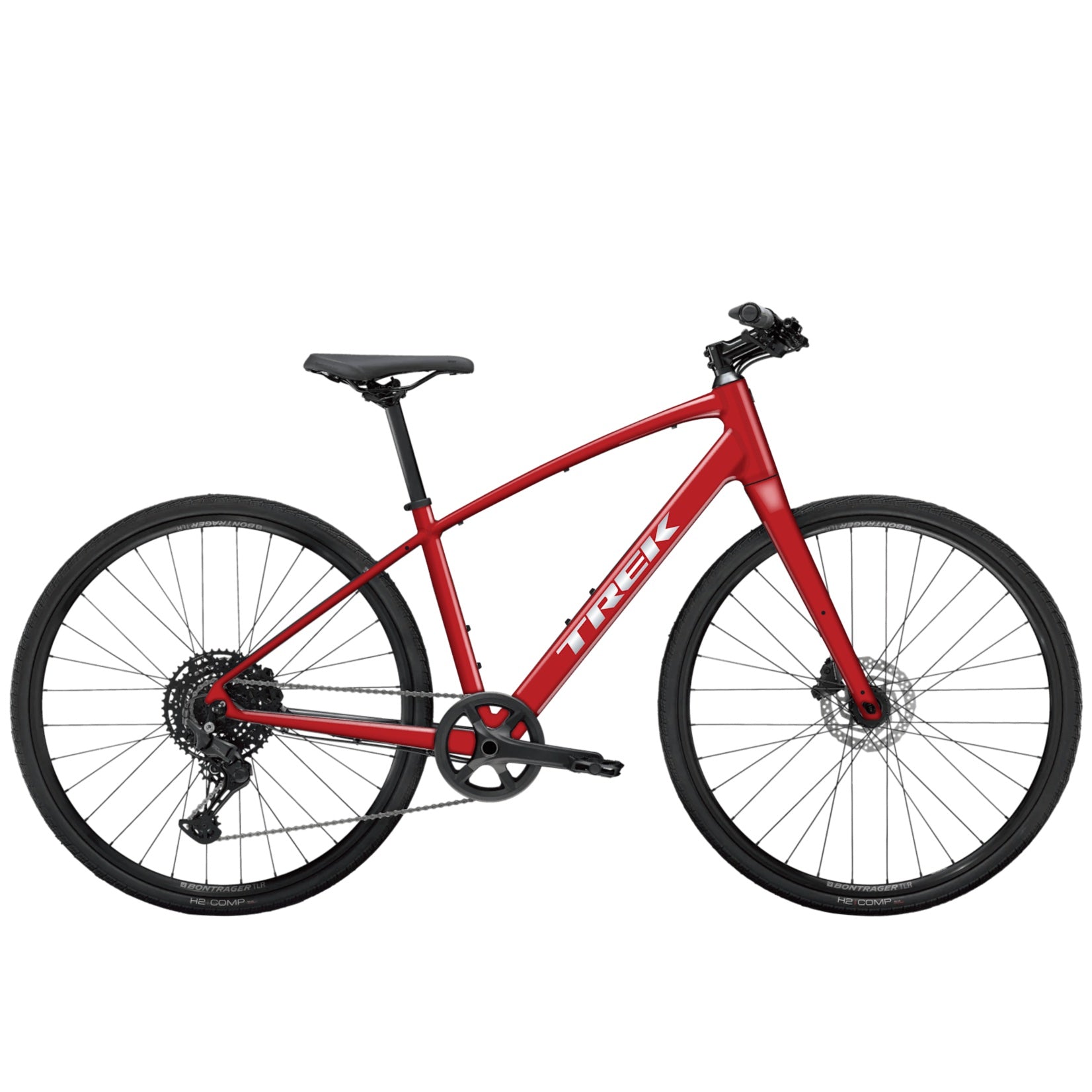

2026 TREK FX 2 STEPOVER GEN 4 (FURY RED)
Regular price $1,099.99
The FX 2 is a stylish and versatile hybrid bike for riding all around town. Exercise, commute or ride for fun with the wide range of speeds, reliable disc brakes that let you stop on a penny and loads of mounts for accessories.
Starting in 2024, we began removing high-emission aluminium from our manufacturing and replacing it with low-emission aluminium made with renewable energy. By October 2025, nearly every alloy bike we make – this one included – had made the switch, driving a major drop in our footprint.
Shimano CUES
Inspired by rider demand for trouble-free drivetrain longevity and performance, Shimano CUES offers a new foundation for versatility and durability across a range of both electric and standard bikes. CUES features Shimano’s new LINKGLIDE drivetrain technology for significantly increased life on wear items like chain, cassette and chainrings.
Shimano LINKGLIDE
LINKGLIDE technology has been specifically engineered for incredible durability while still delivering smooth and decisive shifting – along with a great pedalling experience. Available exclusively on Shimano CUES drivetrains.
*Please note – spec applies to all sizes unless listed separately
|
Frameset |
|
|
Frame |
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|
Fork |
FX alloy, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR |
|
|
|
|
Wheels |
|
|
Hub front |
Formula DC-20, alloy, 6-bolt, 100x5 mm |
|
Skewer front |
139x5 mm bolt-on |
|
Hub rear |
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm |
|
Skewer rear |
152x5 mm QR |
|
Rim |
Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
|
Tyre |
Bontrager H2 Comp, wire bead, 30 tpi, 700x35 mm |
|
|
|
|
Drivetrain |
|
|
Shifter |
Shimano U4000, 9-speed |
|
Rear derailleur |
Shimano CUES U4000 |
|
Crank |
ProWheel Pro alloy, 40T narrow-wide steel ring, 170 mm length |
|
Bottom bracket |
Sealed cartridge, 68 mm |
|
Cassette |
Shimano LINKGLIDE LG300, 11-46, 9-speed |
|
Pedal |
Bontrager City pedals |
|
|
|
|
|
|
|
Components |
|
|
Saddle |
Bontrager Sport |
|
*Seatpost |
|
|
Size: XS, S, M |
Size: XS, S, M Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
|
|
Size: L, XL Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length |
|
*Handlebar |
Size: XS, S, M Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width |
|
|
Size: L, XL Bontrager alloy, 31.8 mm, 15 mm rise, 660 mm width |
|
*Stem |
Size: XS, S, M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length |
|
|
Size: L, XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length |
|
Brake rotor |
Tektro wave, 6-bolt, 160 mm |
|
Brake Set |
Tektro HD-R280 hydraulic disc, 160 mm rotor |
|
Weight |
|
|
Weight |
M - 12.10 kg / 26.68 lbs |
|
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
