TIME XYSTO

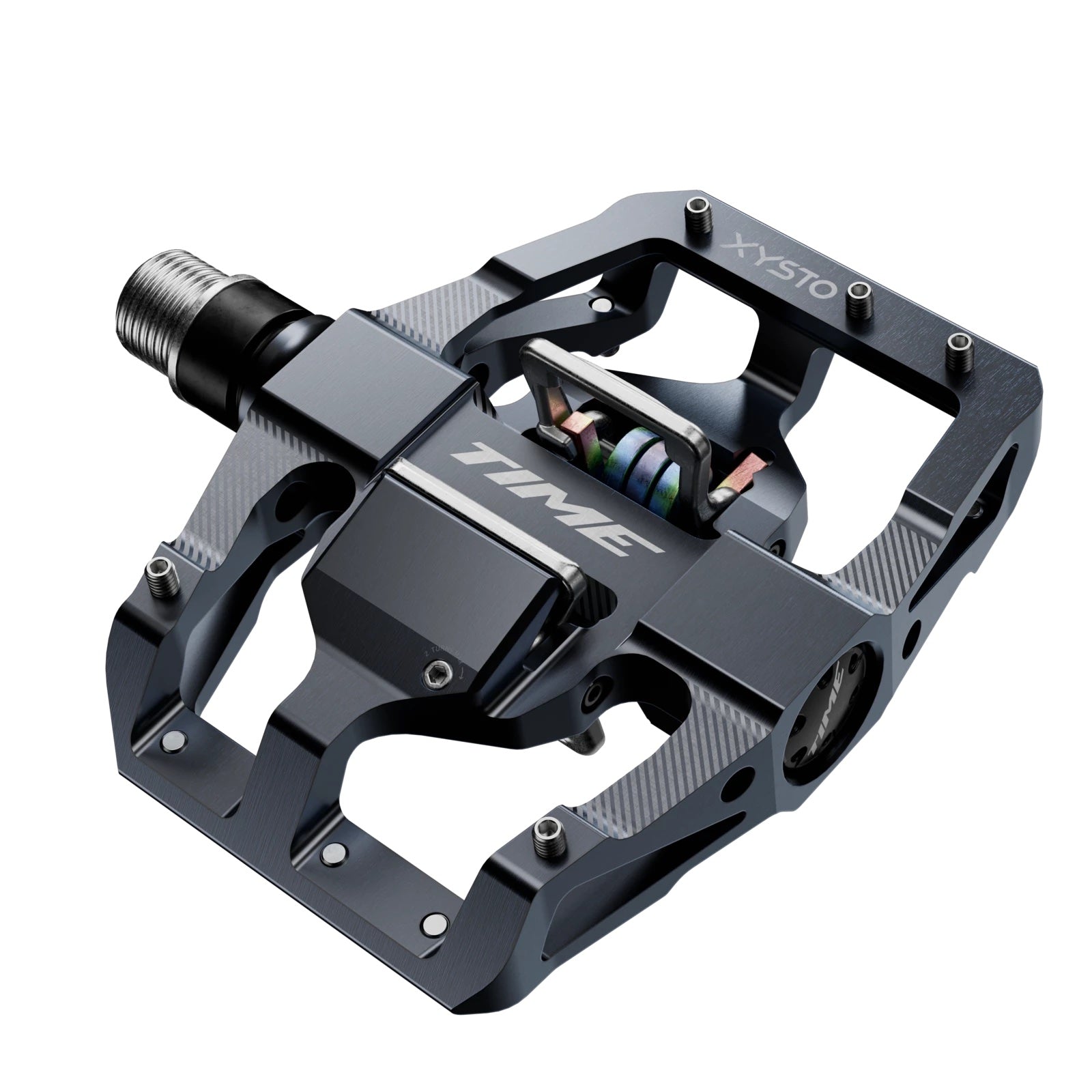

Product image 1

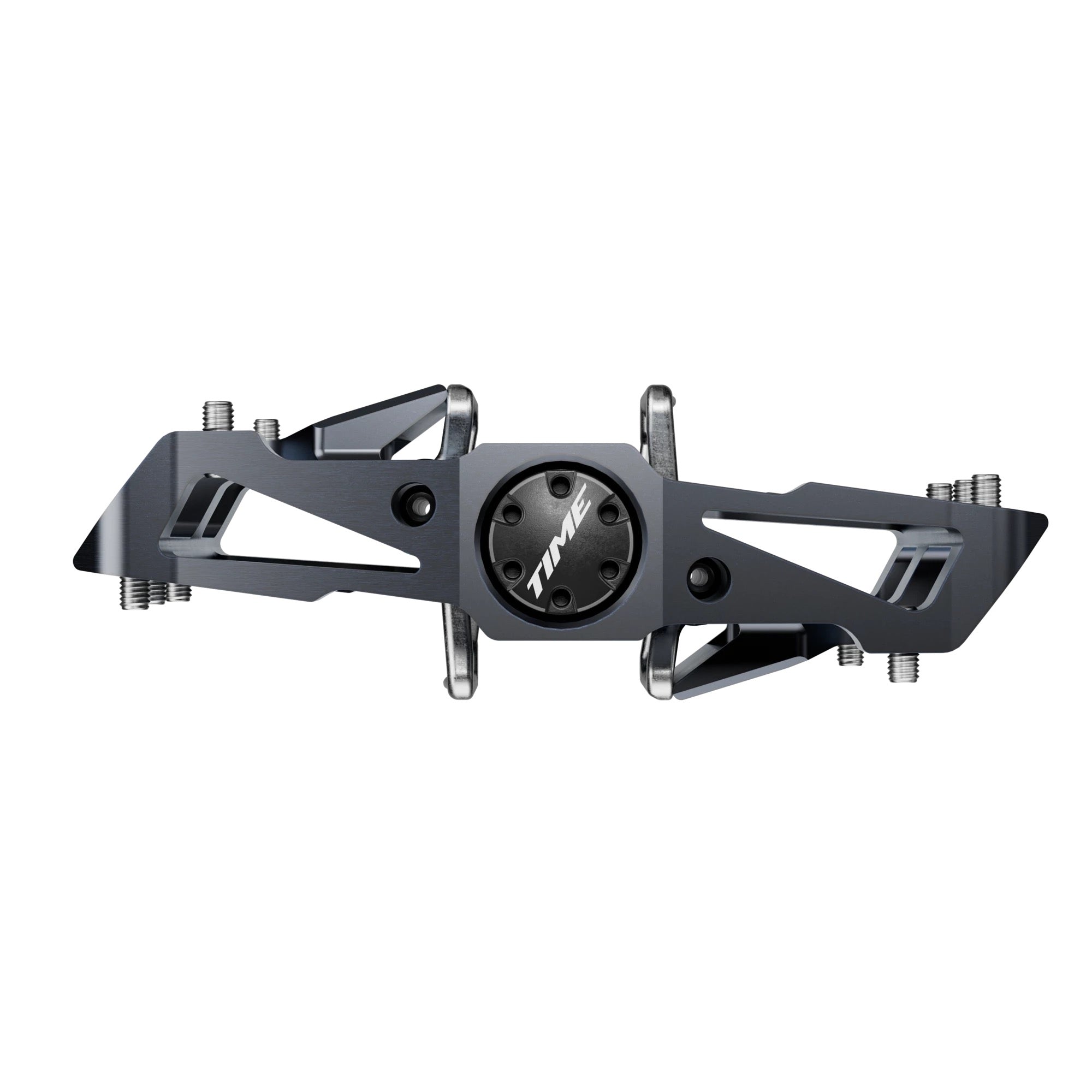

Product image 2

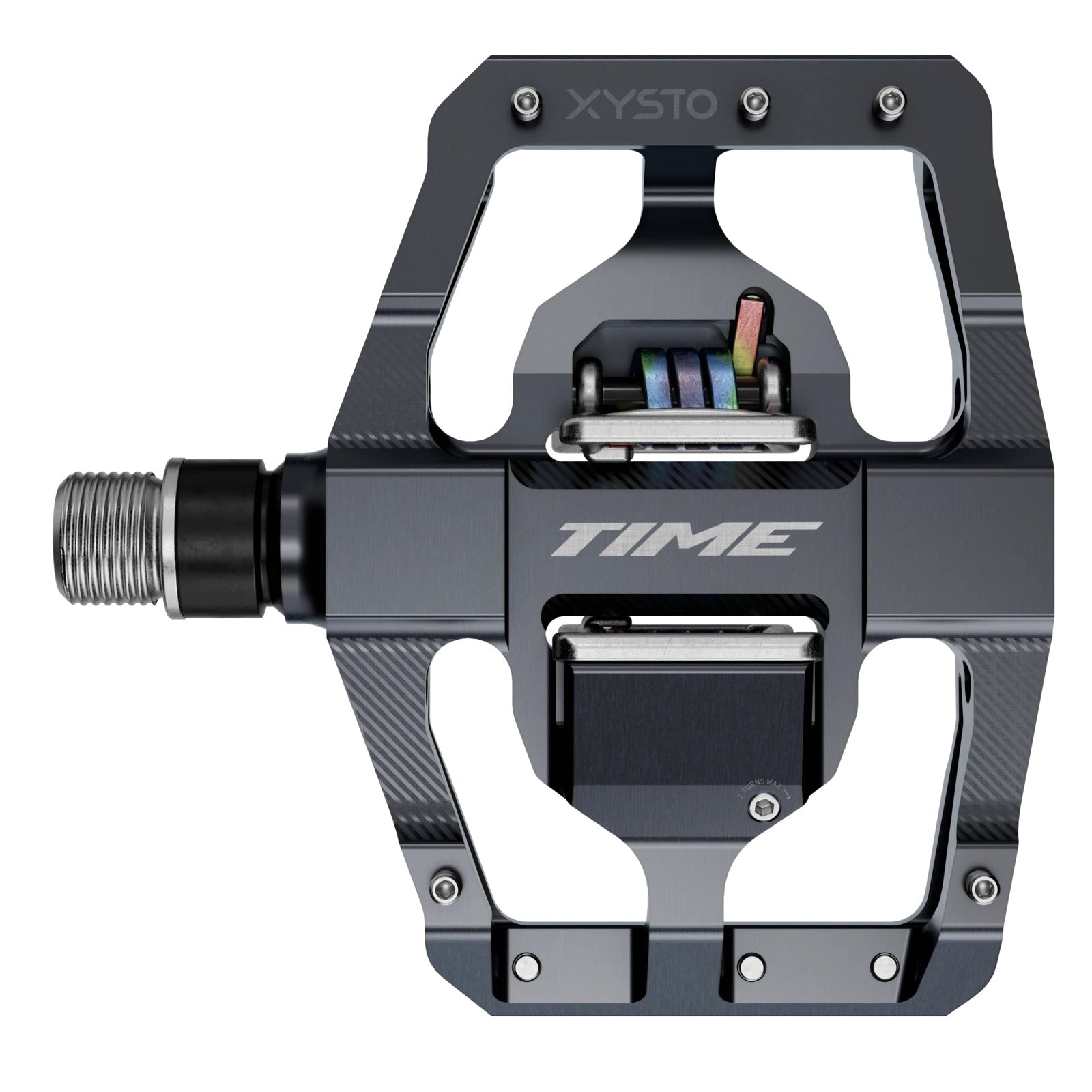

Product image 3
Regular price $345.00
TIME XYSTO is a robust full-bodied pedal system for DH, Enduro, and aggressive off-road riders. The asymmetrical design fits the natural shape of your sole, with the extra-large platform providing additional support and control. TIME’s proven ATAC technology provides easy entry, retention, and mud clearance.
Specifications
| Bearings | Steel |
|---|---|
| Body component | 6106 T6 - Aluminum |
| Cleats | ATAC cleats |
| Pedal stack height | 18.3mm |
| Angular freedom | 5° to -5° with free cleats, 0° with fixed cleats |
| Contact surface area | n/a |
| Distance pedal spindle / crank arm | 57mm |
| Lateral freedom | 2.5 mm or -2.5 mm |
| Release angle | 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats |
| Tension | Micro adjustment |
| Threading | 9/16 - 20 inch |
| Platform Size | X-Large (79 X 94 mm) |
| Color (Pedal) | Dark Grey |
| Accessories | ATAC CLEATS AND 20 GRIP SCREWS |
| Intended use | Gravity |
| Power Measurement | Not Compatible |
| Weight (per pedal) | 226g |
