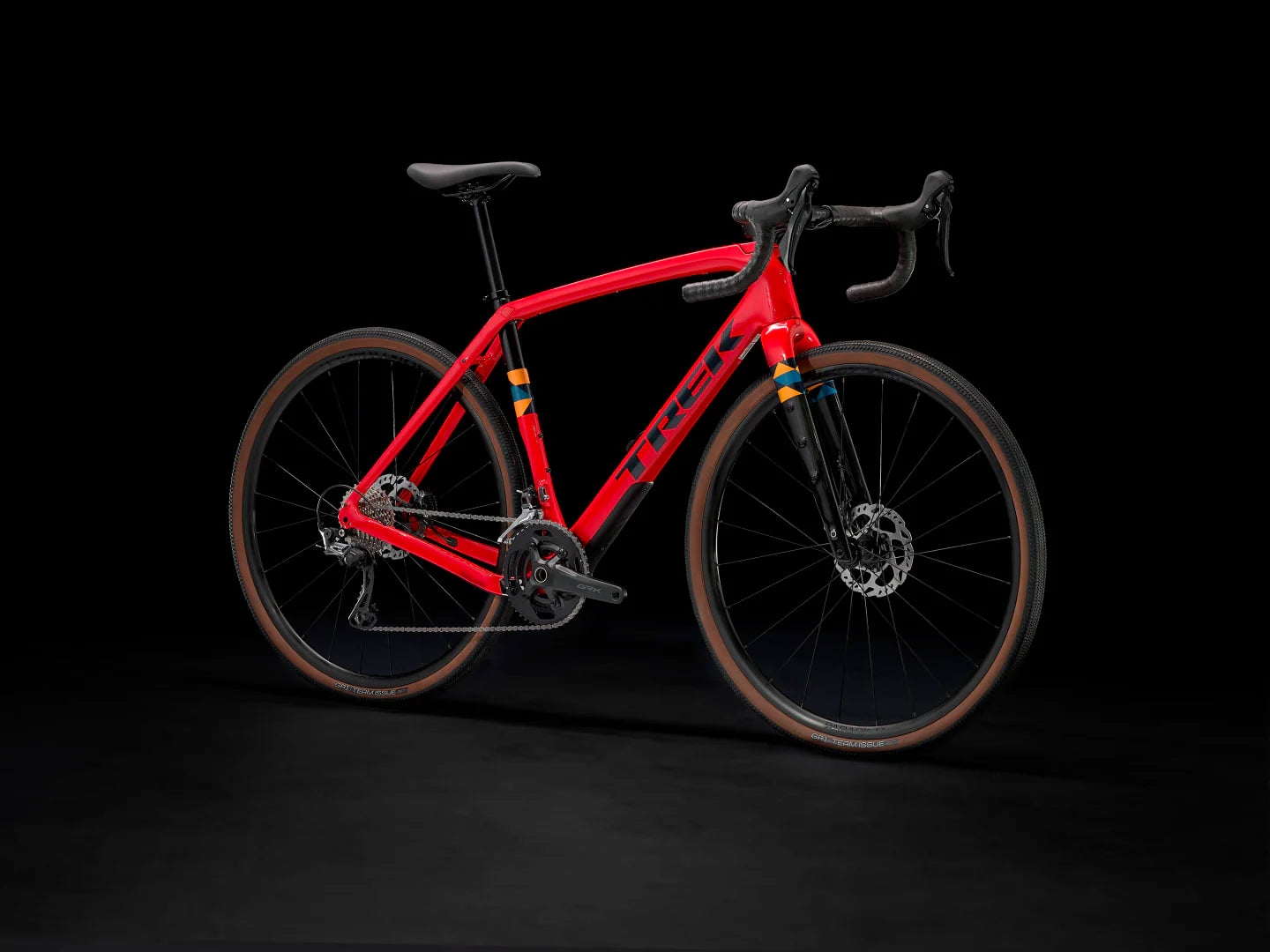

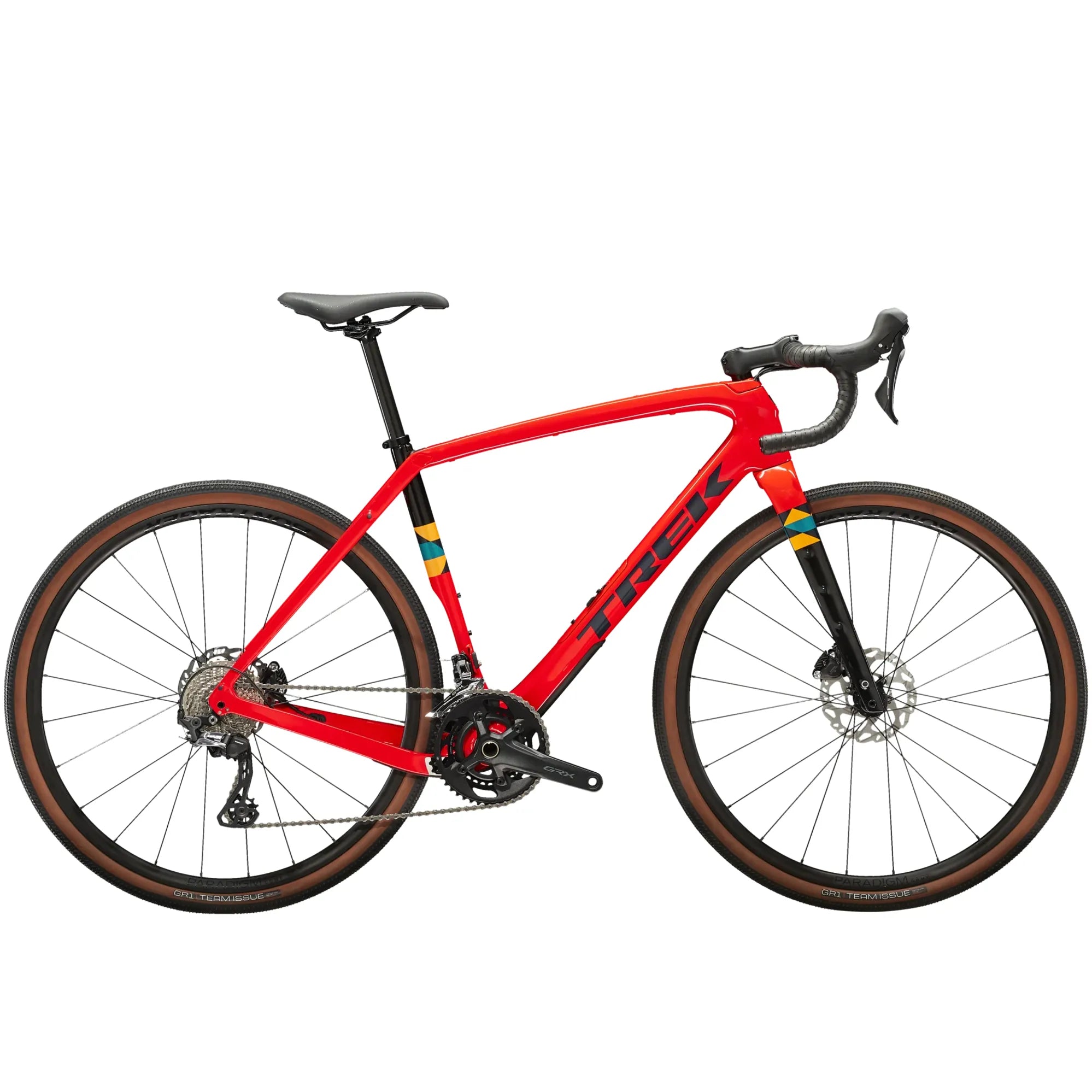

TREK CHECKPOINT SL 5 GEN 2 RADIOACTIVE RED/NAUTICAL NAVY
Regular price
$3,374.99
Sale price
$4,499.99
SPECIFICATIONS
|
Frameset |
|
|
|
|
|
Frame |
500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle |
|
Fork |
Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
|
Frame fit |
Gravel |
|
|
|
|
Weight |
|
|
Weight |
56 - 9.70 kg/21.39 lbs |
|
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
|
|
|
|
Drivetrain |
|
|
Shifter |
Shimano GRX RX600, 11 speed |
|
Front derailleur |
Shimano GRX RX810, braze-on |
|
Rear derailleur |
Shimano GRX RX810, long cage, 34T max cog |
|
*Crank |
Size: 49 Shimano GRX RX600, 46/30, 165 mm length Size: 52 Shimano GRX RX600, 46/30, 170 mm length Size: 54, 56 Shimano GRX RX600, 46/30, 172.5 mm length Size: 58, 61 Shimano GRX RX600, 46/30, 175 mm length |
|
Bottom bracket |
Praxis, T47 threaded, internal bearing |
|
Cassette |
Shimano 105 HG700-11, 11-34, 11-speed |
|
Chain |
Shimano 105 HG601, 11-speed |
|
Max. chainring size |
1x: 46T, 2x: 50/37 |
|
|
|
|
Wheels |
|
|
Wheel front |
Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12 mm thru axle |
|
Wheel rear |
Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 mm thru axle |
|
Hub front |
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
|
Skewer front |
Bontrager Switch thru axle |
|
Hub rear |
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
|
Skewer rear |
Bontrager Switch thru axle, removable lever |
|
Rim |
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
|
Spokes |
14 g stainless steel, black |
|
Tyre |
Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 mm |
|
Tyre part |
Bontrager TLR sealant, 180 ml/6 oz |
|
Rim strip |
Bontrager TLR |
|
Max tyre size |
See service manual |
|
|
|
|
Components |
|
|
*Saddle |
Size: 49, 52 Bontrager Verse Comp, steel rails, 155 mm width Size: 54, 56, 58, 61 Bontrager Verse Comp, steel rails, 145 mm width |
|
Seatpost |
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
|
*Handlebar |
Size: 49 Bontrager Elite Gravel, alloy, 38 cm width Size: 52 Bontrager Elite Gravel, alloy, 40 cm width Size: 54, 56 Bontrager Elite Gravel, alloy, 42 cm width Size: 58, 61 Bontrager Elite Gravel, alloy, 44 cm width |
|
Handlebar tape |
Bontrager Supertack Perf tape |
|
*Stem |
Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length |
|
Brake |
Shimano RX400 hydraulic disc, flat mount |
|
Brake rotor |
Shimano RT70, CentreLock, 160 mm |
|
Rotor size |
Max brake rotor sizes: 160 mm front and rear |
|
|
|
|
Accessories |
|
|
Bag |
Bontrager BITS Internal Frame Storage Bag |
